Portable acoustic camera
Find the sources of mechanical fault sounds
during the inspection of operating equipment.
The camera displays the location of the sound source on the equipment image. The "Mechanics" mode helps assess the nature of the sound based on acoustic excess and acoustic spikes.
Tasks of acoustic diagnostics
Bearings
Locate the sound of a running bearing
and assess for signs of wear or damage
lubrication by acoustic signal.
Electric motors
Locate the sound source
in a running electric motor without stopping
equipment.
Rotating knots
Find the source of sound in drives, couplings, and other mechanisms. Evaluate the signal's nature based on acoustic excess and peaks.
Noise research
Ultrasound imaging in a selected frequency range. Source detection, room and vehicle surveys, acoustic testing.
Mechanic mode
Localization of the source and assessment of the nature of the sound using two acoustic parameters.
Acoustic excess (AE)
Characterizes the severity of peaks in the acoustic signal. An increase in this indicator may indicate insufficient lubrication or increased wear.
Acoustic burst (AB)
Characterizes pulse spikes in the acoustic signal envelope. An increase in this indicator may indicate lubricant contamination or component damage.
Color indicators help track indicator progress. Sensitivity can be adjusted separately for each parameter.
Hear the difference
Compare a regular microphone and the NAC-PA camera:
Listen to the general background, then isolate the sound of a particular source.
From survey to report
Find the source and save the survey results.
-
Find the source

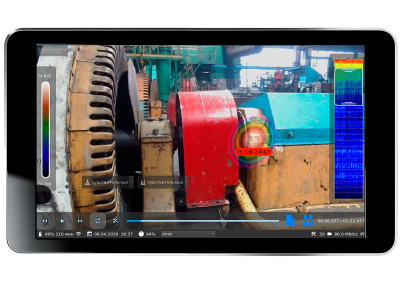

Point the camera at the equipment - the acoustic map will show the location of the sound source.
-
Save the result

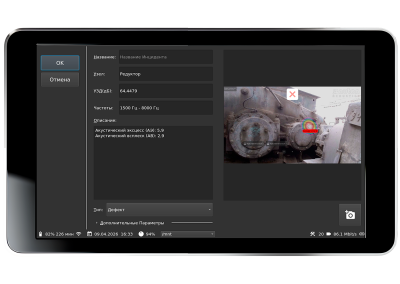

Record the image and measurement results for further analysis.
-
Prepare a report
Generate a report on the saved data in Aura SVS software and submit the results to the operations department.
Choose the design that best suits your needs
Basic, with a thermal imager, or explosion-proof – taking into account diagnostic tasks and operating conditions.
NAC-PA
A portable acoustic camera for diagnostics of mechanical equipment in areas where explosion-proof design is not required.
Localization of sound of mechanical defects and evaluation of acoustic signal in the "Mechanics" mode.
NAC-PA
Portable acoustic camera with thermal imaging for acoustic inspection and temperature monitoring of operating equipment.
All the capabilities of the "Mechanics" mode with additional visualization of temperature distribution.
NACEx-PA
Portable acoustic camera for diagnostics of mechanical equipment in hazardous areas in accordance with explosion protection marking.
All the capabilities of the "Mechanical" mode with certification for use in explosion-proof environments.
Specifications
| Name | Value |
|---|---|
| Type of flaw detection | Acoustic |
| Method of flaw detection | Registration of acoustic signals passing through a material or structure |
| Number of microphones | 112 Digital MEMS Microphones |
| Microphone array aperture | 425 mm |
| Acoustic image frame rate | up to 30 FPS |
| Number of recording channels | 112 |
| Integral level of acoustic signals | from 10 to 150 dB |
| Frequency range | from 50 to 20000 Hz |
| Operating frequency range | from 1000 to 12000 Hz |
| Field of optic vision | 70° |
| Field of acoustic vision | 180° |
| Detection range | 0,3 – 50 m |
| Operating mode | Mechanic mode (real-time display values of acoustic kurtosis and and acoustic burst) User mode (custom configuration for specific needs) |
| Screen size | 7" |
| Display Resolution | 1024 × 600 |
| Display Type | Capacitive Touchscreen |
| Camera resolution | 1920 × 1080 (Full HD) |
| Zoom | 6-x digital zoom |
| Storage space | 1 TB |
| Max. recording time | 20 hours |
| Number of stored images, not less | 20000 |
| Image format | JPG |
| Recording format | NACF container file |
| Wireless interface | Wi-Fi, Bluetooth |
| Network interface | Ethernet |
| PC connection interface | USB Type-C |
| Interface for external media connection | USB Type-A |
| Device charging interface | DC power connector |
| Operating time in real-time acoustic field visualization mode | 5 hours |
| Tripod connection | Thread 1/4"(M) |
| IP rating | IP54 |
| Explosion protection rating (for NACEx-PA) | 1Ex ib mb IIC T4 Gb X, Ex ib mb tc IIIB T135° Dc X |
| Operating temperature range | -20 to +40 ºC |
| Operating temperature range limit | -40 to +60 ºC |
| Product Size | 466×462×80 |
| Product weight, not more: - NAC-PA - NACEx-PA | 3.5 kg 3.9 kg |
